- ✔✔16 Pin J1962 OBD2 Female Connector Cable Plug Pigtail
- ✔✔All 16 Pins Female Connected with different colors wires for different applications

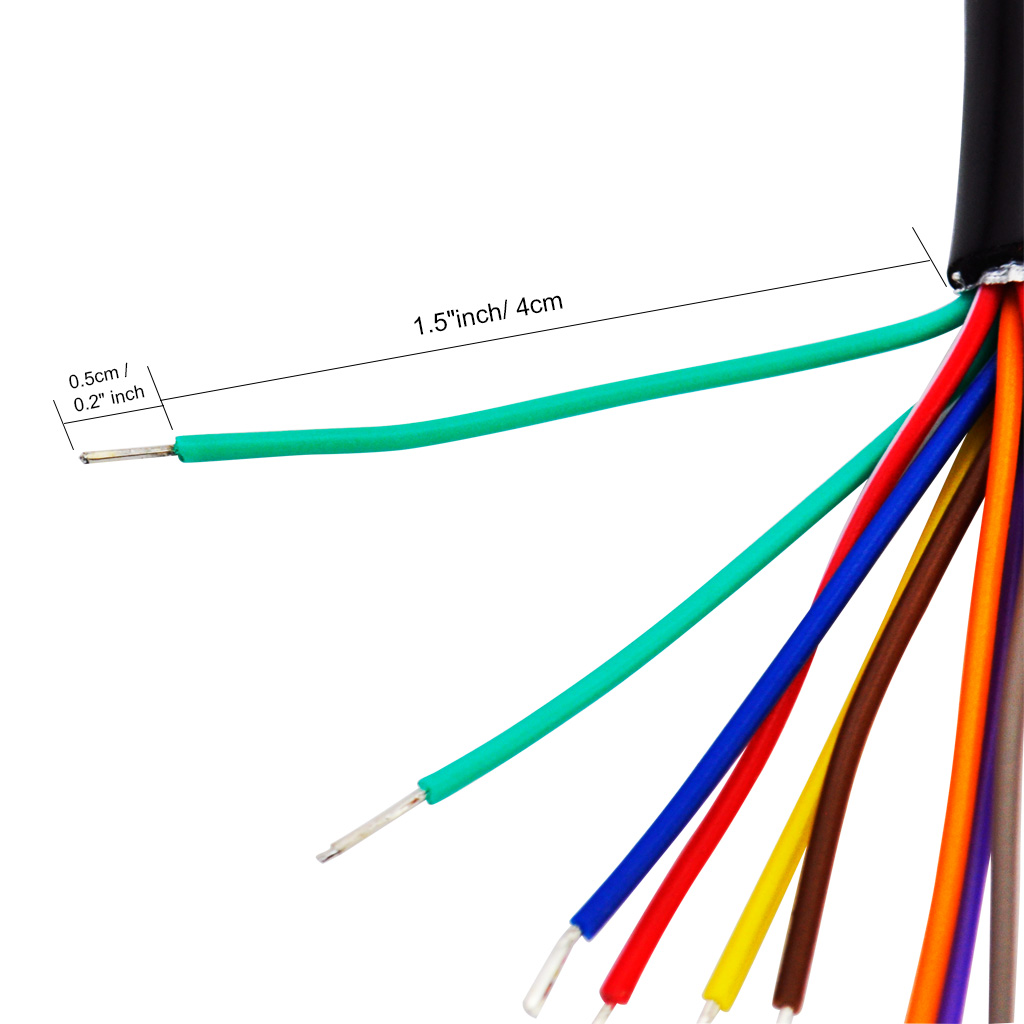

- ✔✔Cable Pigtail Length: 150cm / 4.92ft
- ✔✔Great for DIY and homemade projects
- ✔✔All 16 Pins Connected,with high quality, work for your unique project
Descrption:

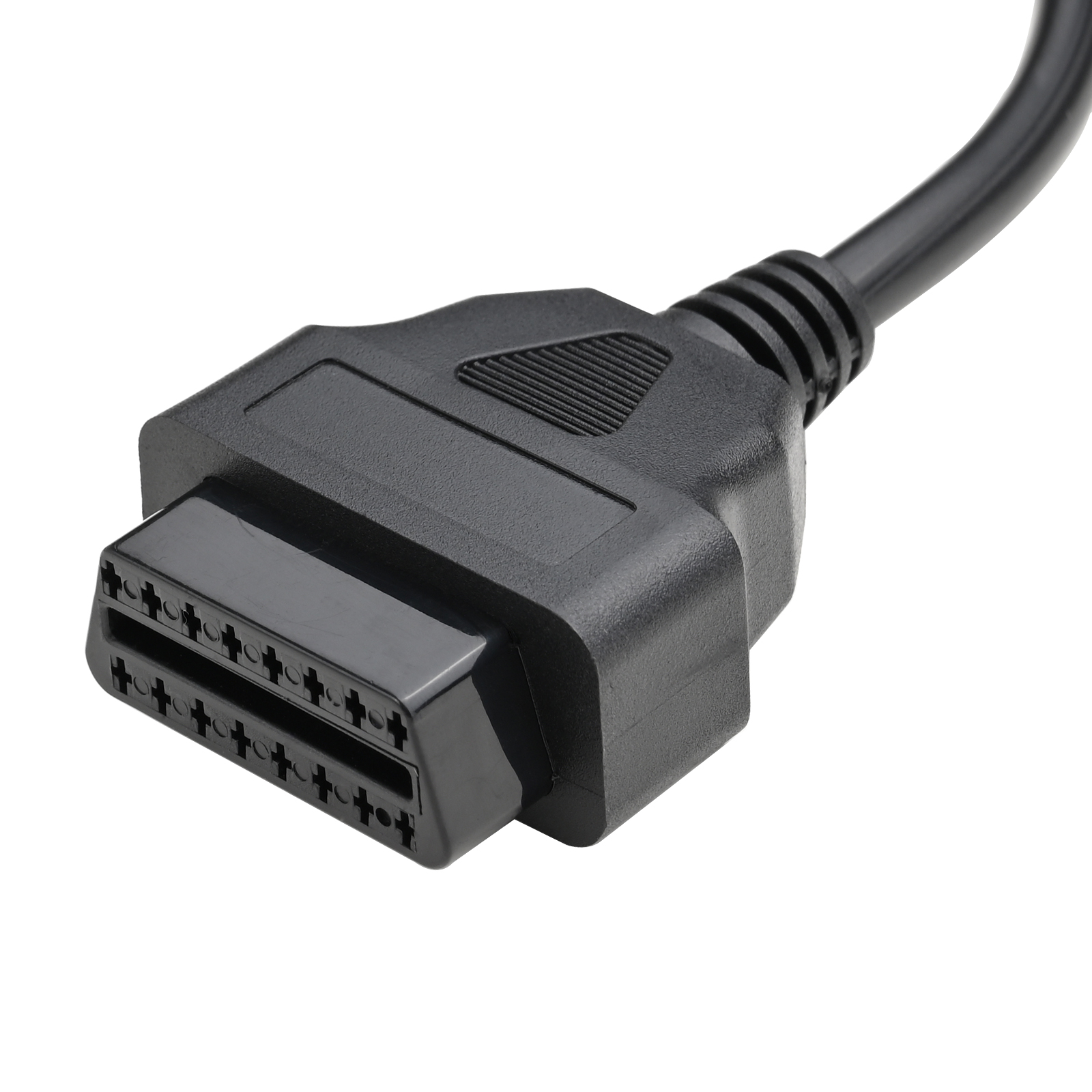

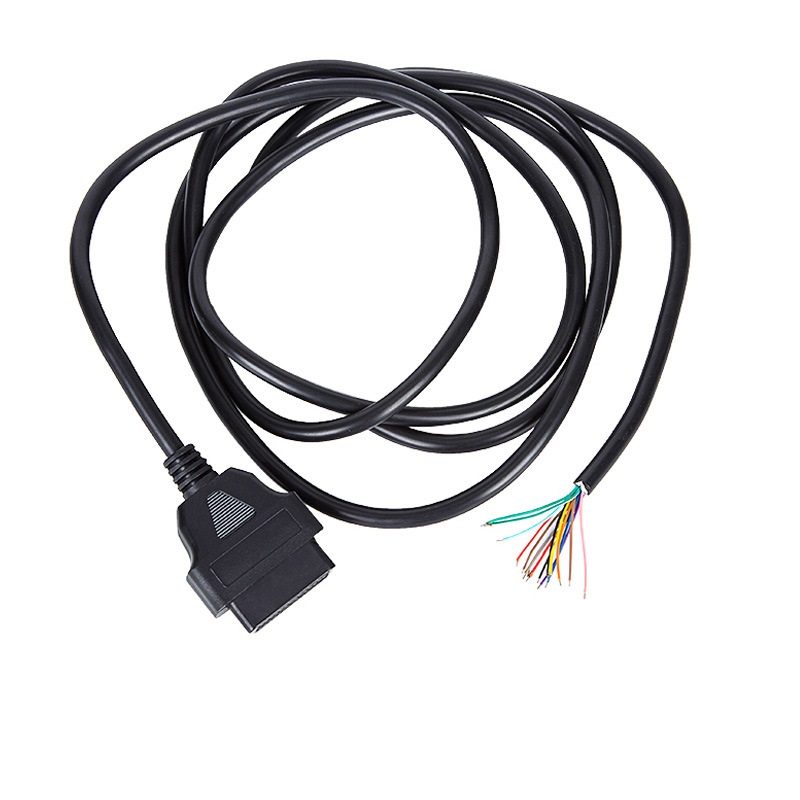

- 16 Pin J1962 OBD2 OBD-II Female Connector to Open Plug Wire, OBD Diagnostic Extension Cable Pigtail for DIY (150cm/4.92ft )
- This is a female plug end that will connect to an OBD II in a car or DIY any projects
- Connection: 16 Pin OBDII J1962 Female Connector, Open Plug Wire.

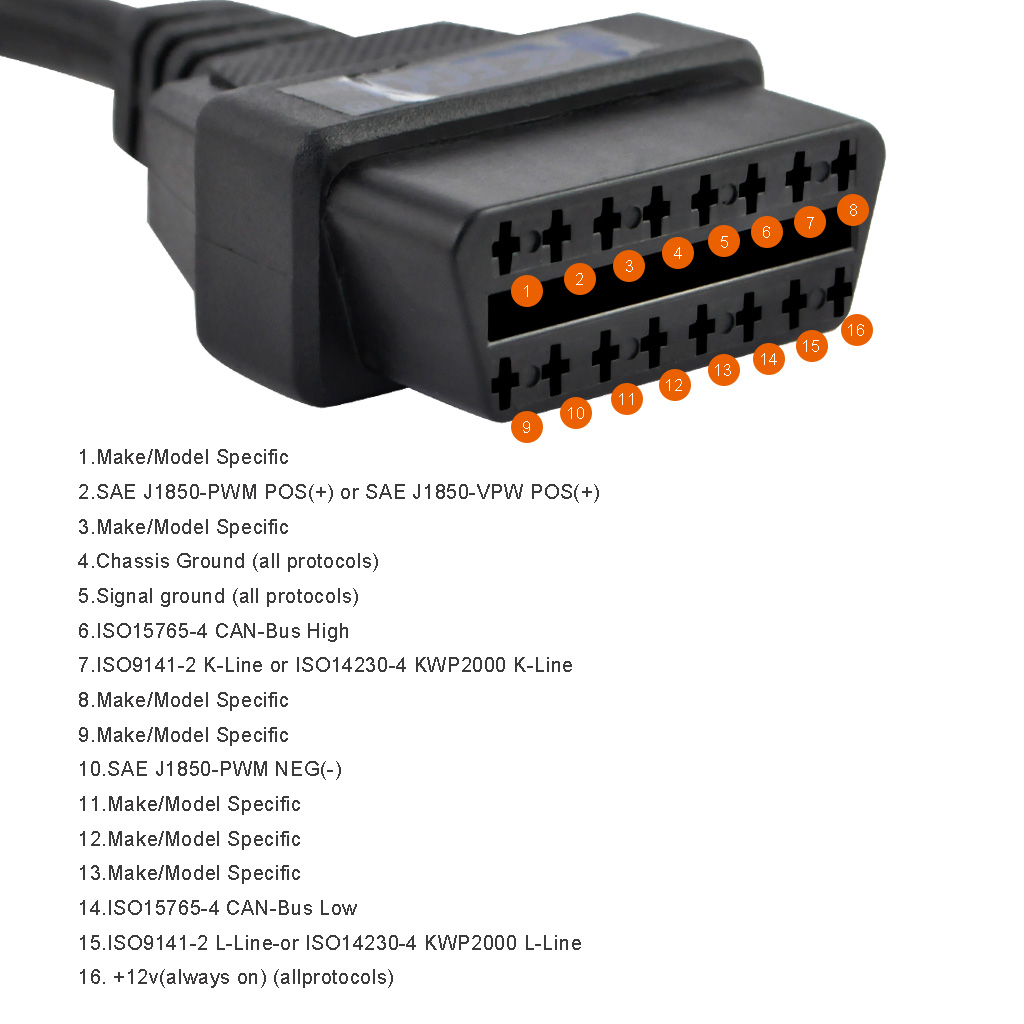

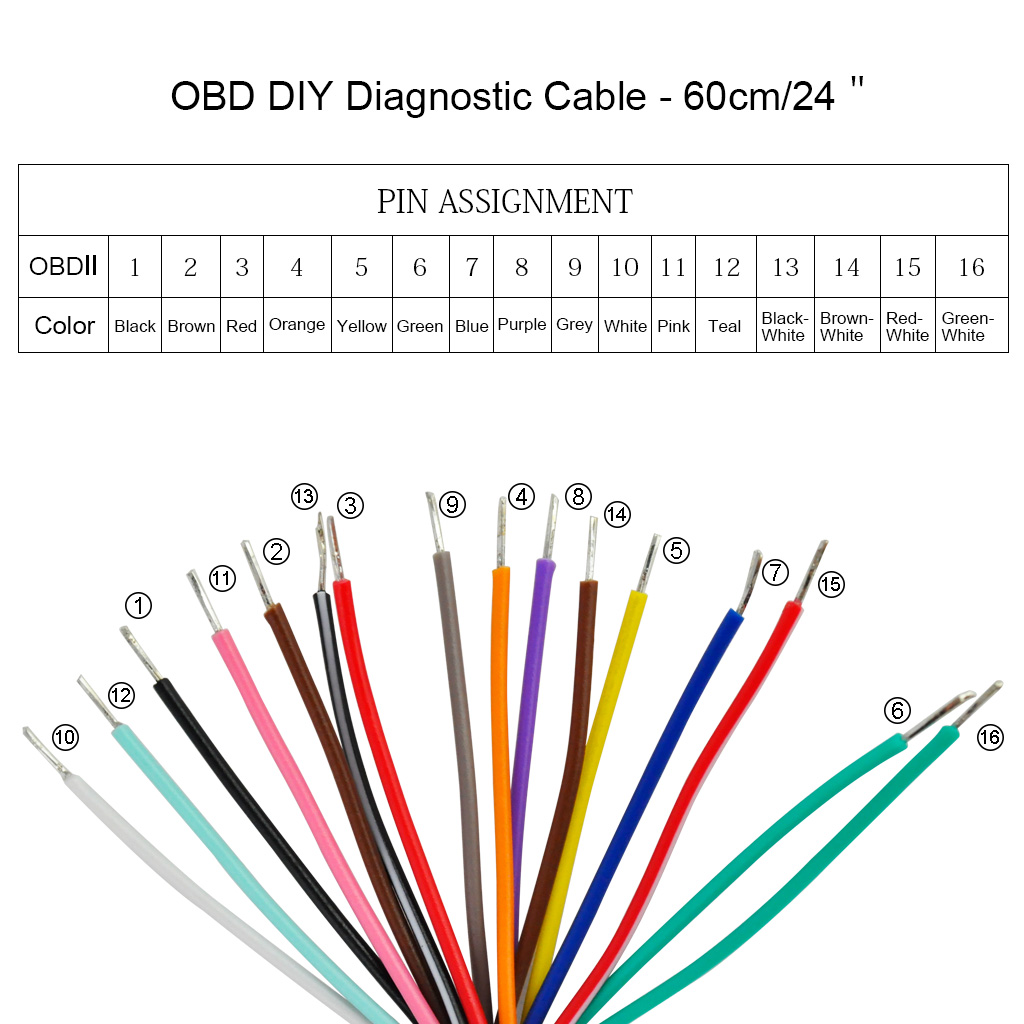

Pinout :
1:Black - Vendor
2:Brown – J1850 Bus +
3.Red - Vendor
4:Orange – chassis ground
5:Yellow – signal ground
6:Green – CAN high
7:Blue – K-line
8:Purple - vendor
9:Gray - vendor
10:White– j1850 BUS
11:Pink - vendor
12:teal - vendor
13:Black/White - vendor
14:Brown/White – CAN low
15:Red/White – K line low
16:Green/White - Battery
Package included:
- 1 x 16-Pins OBDII J1962F Female Connector Pigtail Cord 150cm/4.92ft
