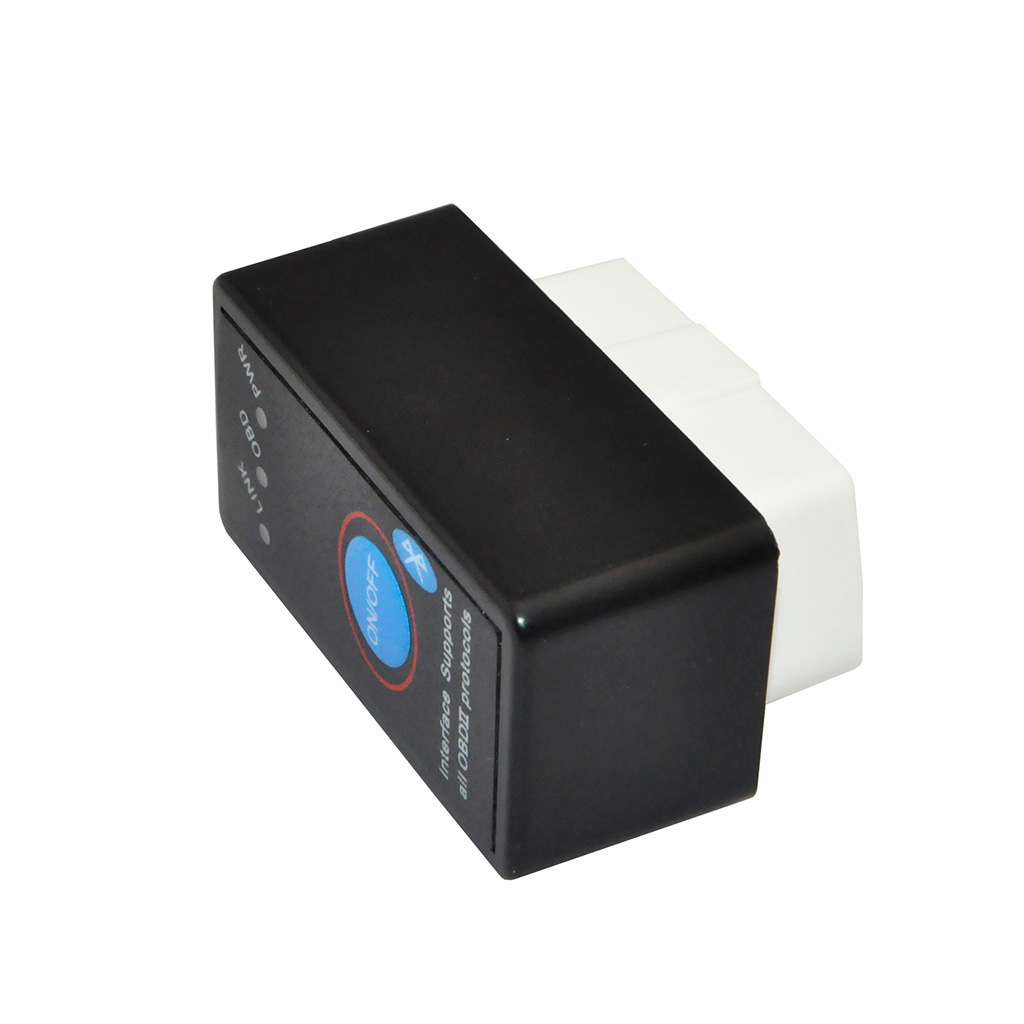

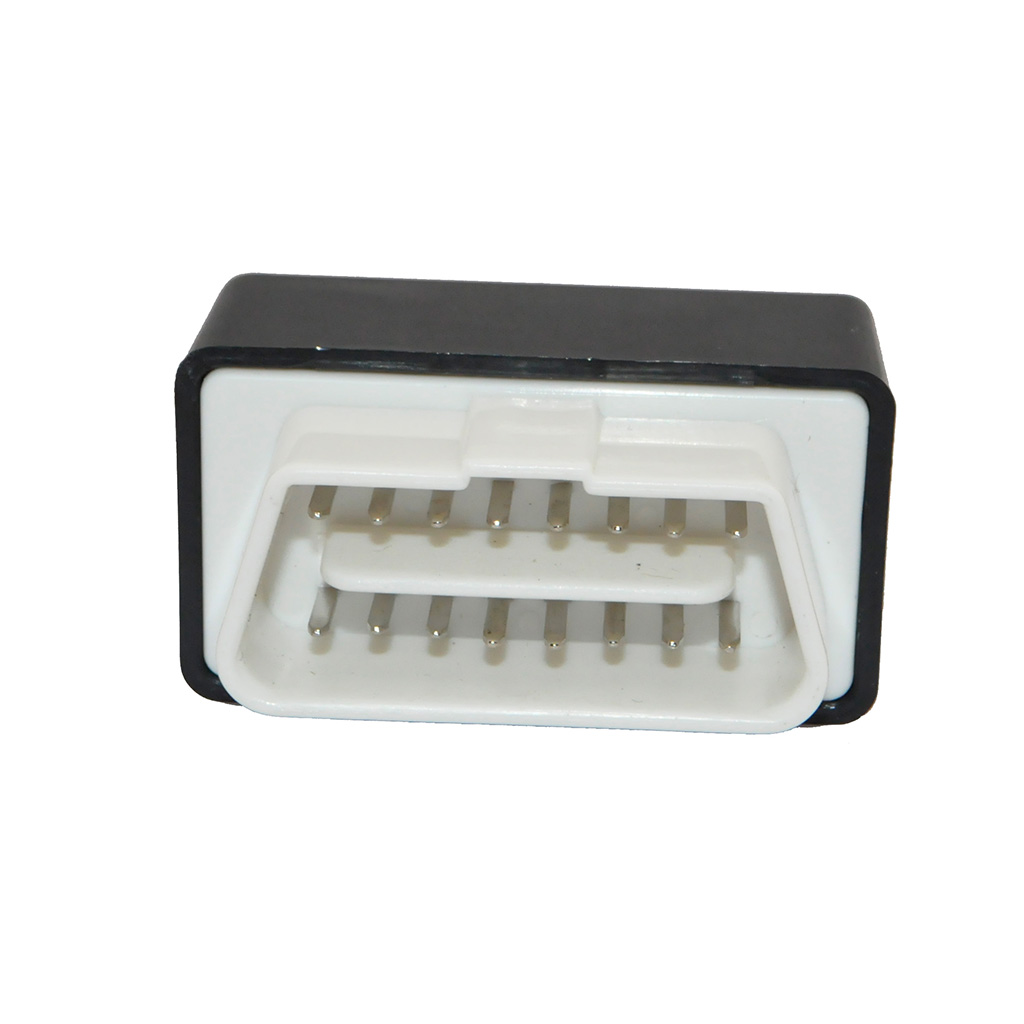

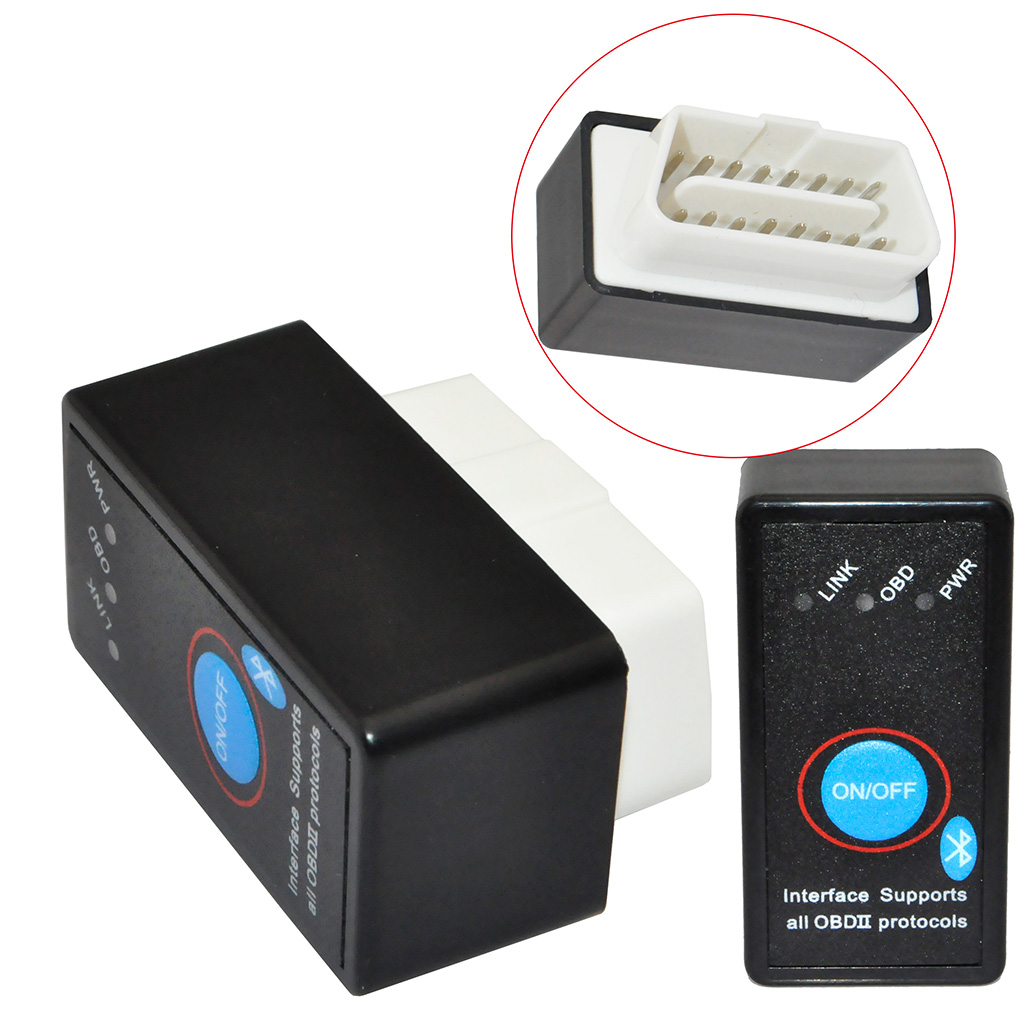

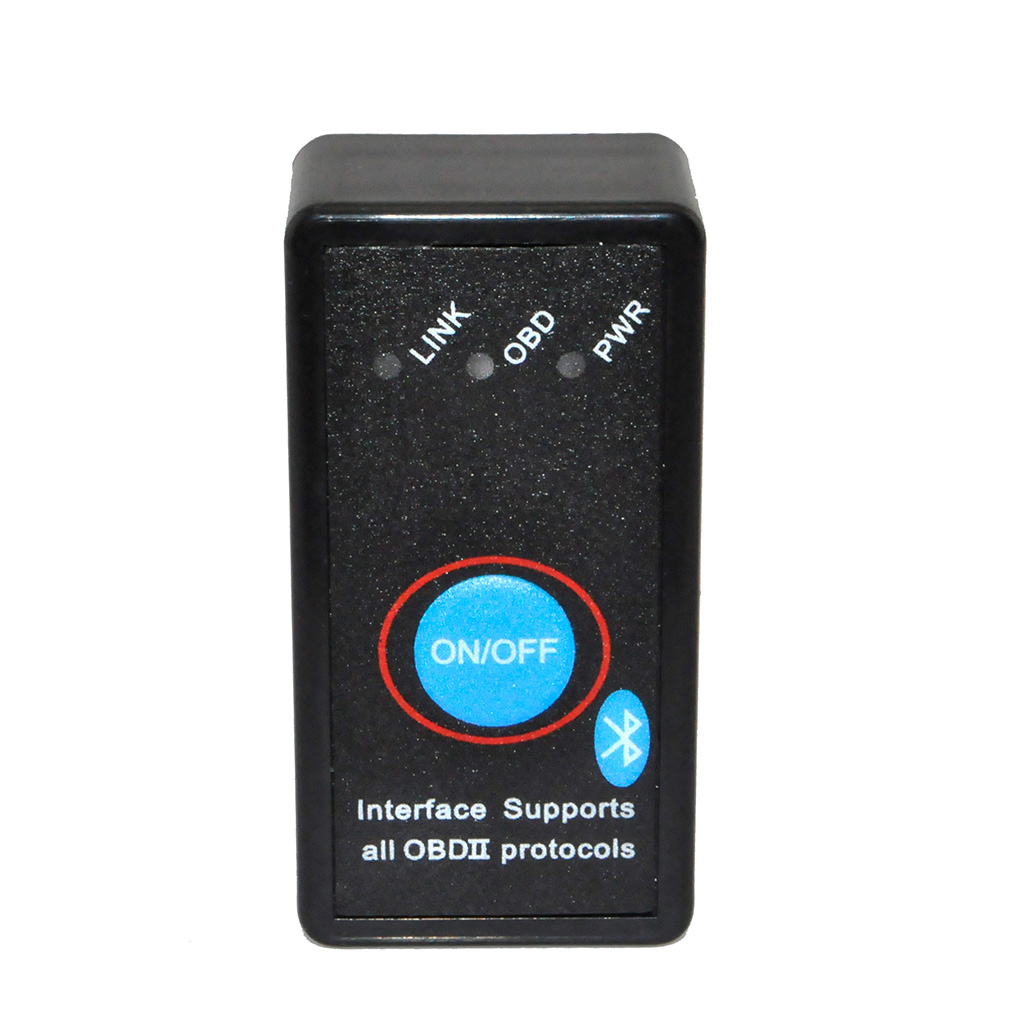

Car Bluetooth OBD2 II Diagnostic Scanner Tool V1.5 With ON/OFF Switch 25K80 Chip For Android Torque
Top 6 Reasons To Get Mini OBD2 Bluetooth 2.0 scanner with power switch:
1. Software Version: V2.1 (depending on software)
2. Hardware Version: V1.5
3. Works with all OBD-II compliant vehicles
4. Wireless (Bluetooth)
5. Support Four operating platforms (IOS, Android, Symbian, Windows)
6. Have the power switch for turning on or off the power supply.
Support protocols:
- 1. SAE J1850 (41.6Kbaud)
- 2. SAE J1850 VPW (10.4Kbaud)
- 3. ISO9141-2(5 baud init, 10.4Kbaud)
- 4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
- 5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
- 6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
- 7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
- 8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
- 9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
Specifications:
- Communication method: Bluetooth 2.0
- Hardware version: V1.5
- Master control chip: ST
- Working voltage: 9V~16V
- Working current: 35mA
- Standby current: 25mA
- Color: black

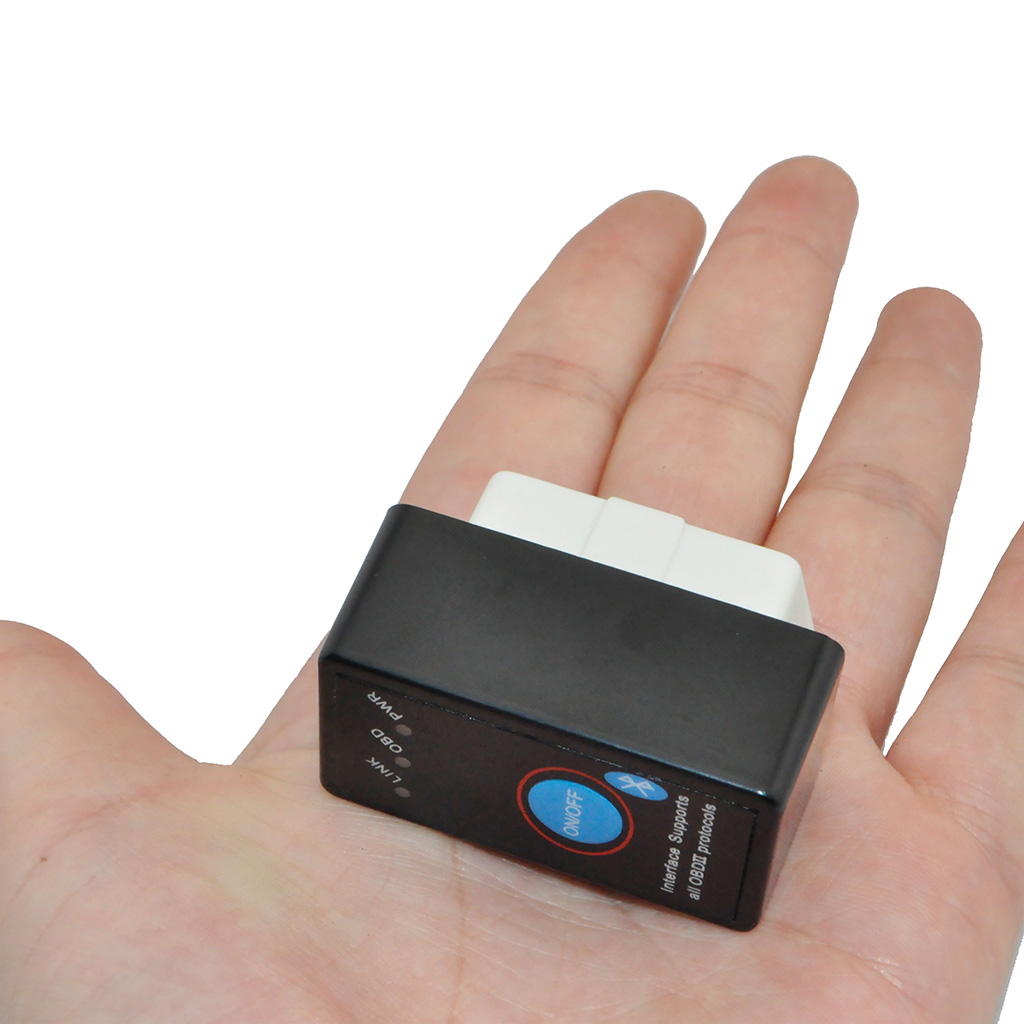

- Size: 43*25*23mm
- Package size: 66*26*100mm
Functions:

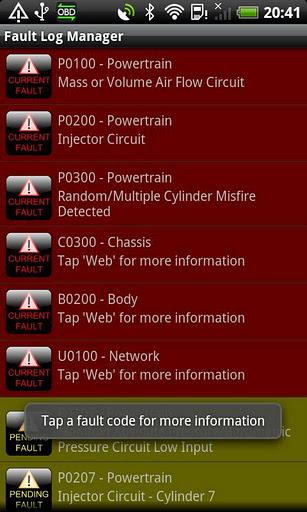

1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL ("Check Engine" light)

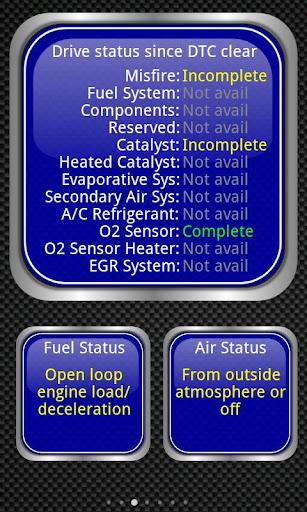

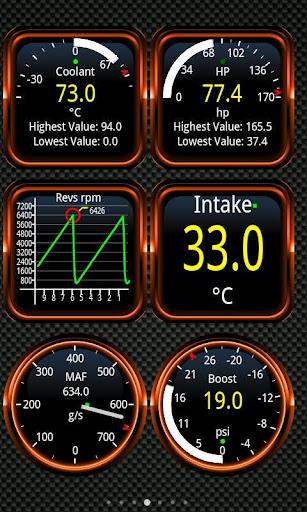

3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Coolant Temperature
7: Fuel System Status
8: Vehicle Speed
9: Short Term Fuel Trim
10: Long Term Fuel Trim
11: Intake Manifold Pressure
12: Timing Advance
13: Intake Air Temperature
14: Air Flow Rate
15: Absolute Throttle Position
16: Oxygen sensor voltages / associated short term fuel trims
17: Fuel System status
18: Fuel Pressure
19: Many others
Manufations:
- Communication: Bluetooth 2.0
- Support System: Android, Symbian, Windows
- Working Voltage: 9v ~ 16v
- Working Current: 35mA
- Standby Current: 25mA
- Operating temperature: -40 ℃ ~ 85 ℃
- Working Humidity: less than 60%
- Size: 43mm * 25mm * 30mm
Compatible systems:
- Software support platform: Windows XP, Windows 7/8, IOS, Android, Symbian.
Compatible software:
- Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.

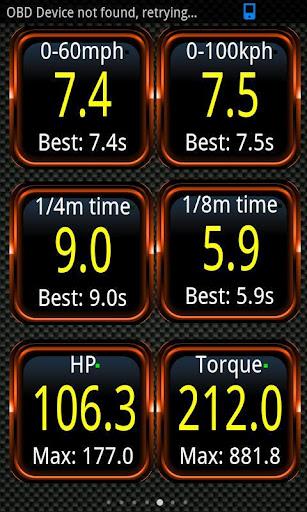

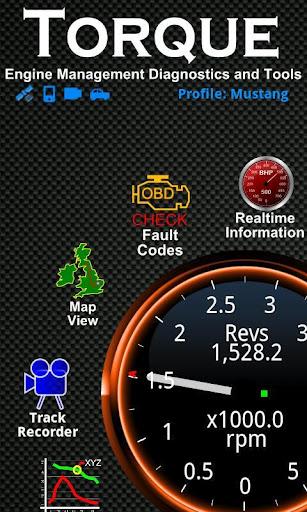

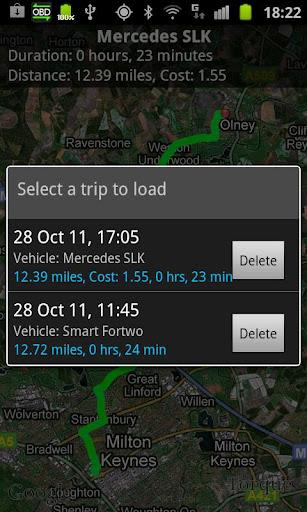

- Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
- Symbian: OBDScope
Package included:
- 1 x Mini OBD2 Bluetooth 2.0 scanner with power switch
- 1 X CD Software
