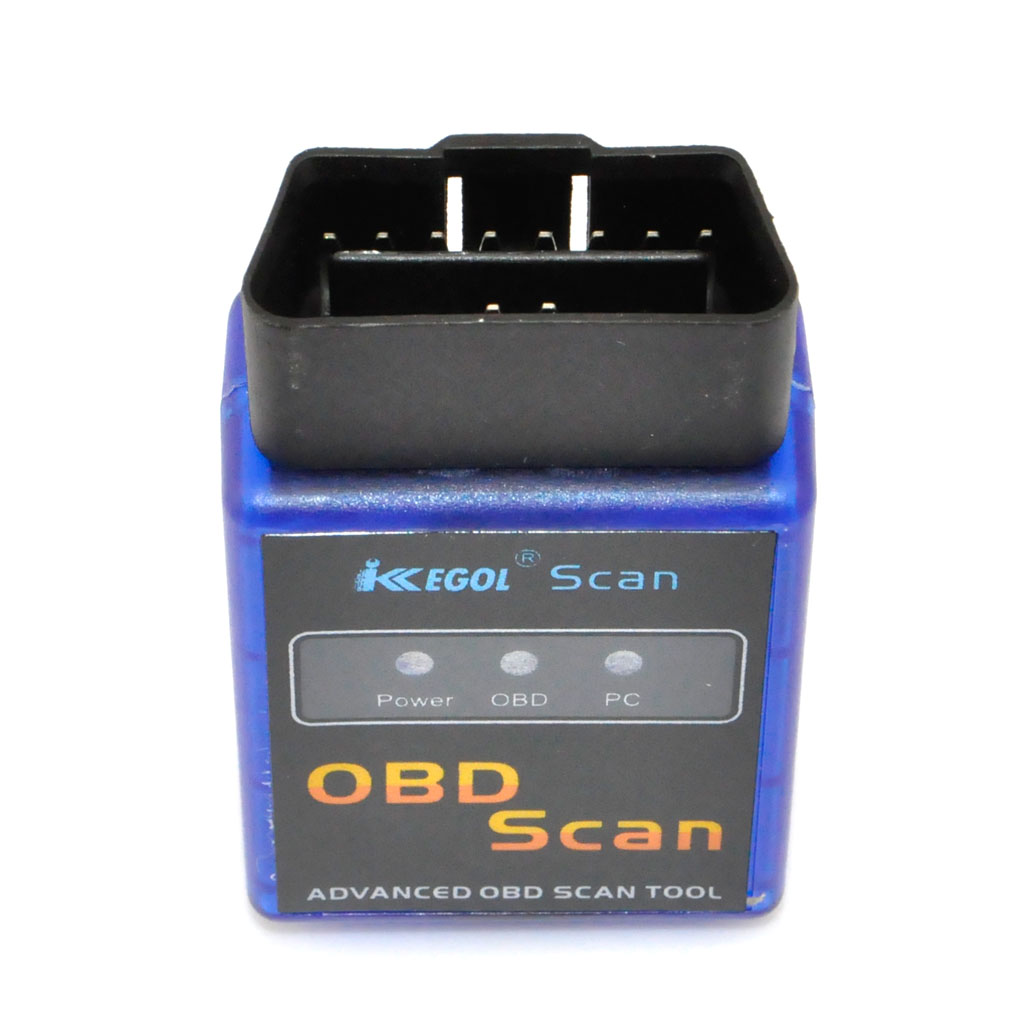

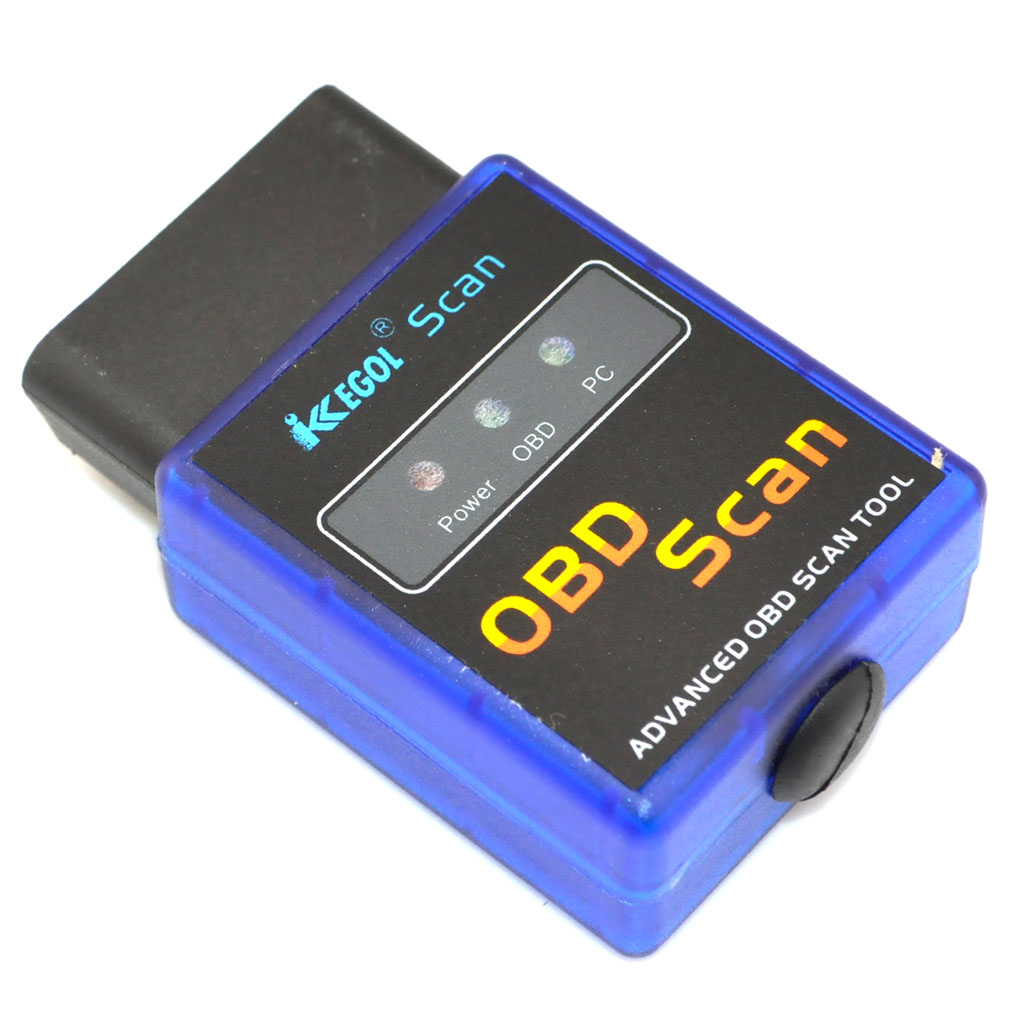

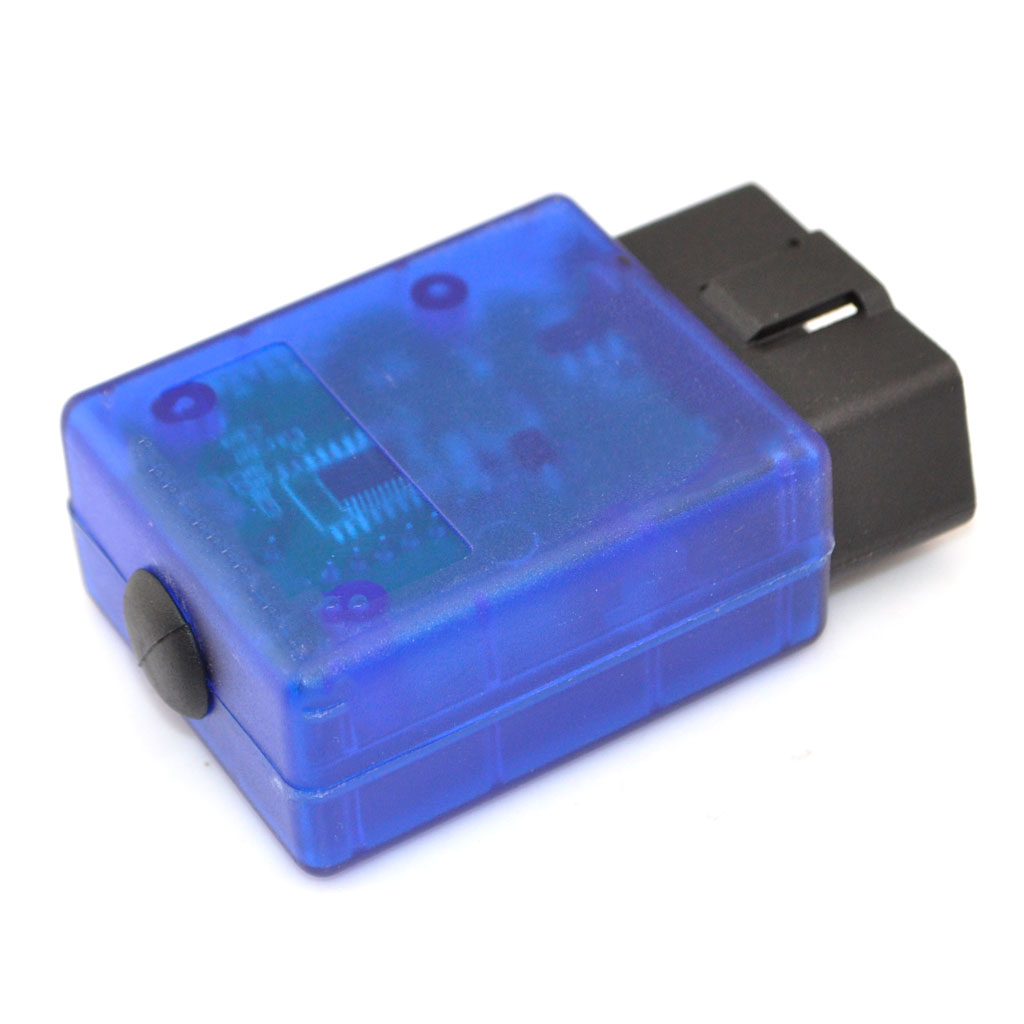

- This is the latest PC-based scan tool.
- Bluetooth Car USB ELM327 V1.5 Lead compatible for OBDII and Android Torque Diagnostic Scanner Compatible for all OBDII /OBD2 protocols. (You could check your car manual to find the protocols.)
- It also can support Android Torque.
- Bluetooth Connection, No Batteries, Cables, or Switches.
- View live engine data on your Android phone - Connect to your vehicle ECU Retrieve Fault Codes (DTCs) and clear Check Engine lights.
- Can also be used with a PC with a Bluetooth Card
Features:
- OBD SCAN is the newly developed wireless scan tool. It supports all OBD-II protocols
- 0.Automatic
- 1.SAE J1850 PWM(41.6Kbaud)
- 2.SAE J1850 VPW(10.4Kbaud)
- 3.ISO9141-2(5 baud init,10.4Kbaud)
- 4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
- 5.ISO14230-4 KWP(fast init,10.4 Kbaud)
- 6.ISO15765-4 CAN(11bit ID,500 Kbaud)
- 7.ISO15765-4 CAN(29bit ID,500 Kbaud)
- 8.ISO15765-4 CAN(11bit ID,250 Kbaud)
- 9.ISO15765-4 CAN(29bit ID,250 Kbaud)
- A.SAE J1939 CAN(29bit ID,250*Kbaud)
- B.USER1 CAN(11*bit ID,125*Kbaud)
- C.USER2 CAN(11*bit ID,50*kbaud)
- *default settings(user adjustable)
- Size:70mm*45mm*25mm
- Net Weight: 46g
Functions:
- 1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
- 2.Clear trouble codes and turn off the MIL ("Check Engine" light)
- 3.Display current sensor data, including:
- 4.Engine RPM
- 5.Calculated Load Value
- 6.Coolant Temperature
- 7.Fuel System Status
- 8.Vehicle Speed
- 9.Short Term Fuel Trim
- 10.Long Term Fuel Trim
- 11.Intake Manifold Pressure
- 12.Timing Advance
- 13.Intake Air Temperature
- 14.Air Flow Rate
- 15.Absolute Throttle Position
- 16.Oxygen sensor voltages/associated short term fuel trims
- 17.Fuel System status
- 18.Fuel Pressure
- 19.Many others...
To list a few compatible vehicles:
- Benz2001/02/03W203 C200K (ISO)
- BMW X5 2002 (ISO) Chevrolet Aveo (ISO)
- Citroen C3 2004 (ISO) Daihatsu YRV 2005 (ISO)
- Daihatsu YRV Turbo 2006 (ISO)
- Fiat Tipo 2002 (ISO)
- Ford New ocus 2006(CAN)
- Honda Accord 2006 JDM (ISO)
- Honda Accord Euro R 2004 JDM (ISO)
- Honda City GD8 (ISO)
- Honda Civic ES 1.6A (ISO)
- Honda Integra Type R DC5 JDM (ISO)
- Honda Jazz 1.4M (ISO)
- Hyundai Accent 2004 (ISO)
- Hyundai Getz 1.3A 2004 (ISO)
- Hyundai Getz 1.6M 2004 (ISO)
- Hyundai Matrix 2004 (ISO)
- HyundaiSanta Fe2.4A (ISO)
- Hyundai Sonata GLS (ISO)
- Hyundai Sonata 2005 (ISO)
- Hyundai Tuscani FX (ISO)
- Kia Carens 2005 (ISO)
- Kia Magentis 2005 (ISO)
- KiaRioLS (ISO)
- Kia Sorento SUV 2005 (ISO)
- Lexus es300 Mazda 2 (CAN)
- Mazda 5 (CAN)
- Mazda 6 (CAN)
- Mazda Premacy 2001 (ISO)
- Mazda RX8 (CAN)
- Mitsubishi Colt 2003 (ISO)
- Mitsubishi Colt Plus 2005 (ISO)
- Mitsubishi Eclipse(GST-----Turbo Car can be tested for the year 1995-2000;RS/GS----1994-1996 GS all can do;Turbo Car for the year 1996-2000,only have speed and TPS,can clear the DTCS)
- Mitsubishi Lancer Evolution IX 2006 (ISO)
- Mitsubishi Pajero 3.5 V6 2006 (ISO)
- Nissan Sunny B14 (ISO)
- Nissan Sunny VIP FB15 (ISO)
- Nissan X-Trail 2.0L 2004 (ISO)
- Nissan X-Trail 2.5L 2004 (ISO)
- Peugeot 206 2001 –Only can show RPM
- Peugeot 206 (ISO)
- Peugeot 307 (ISO)
- Peugeot 407 (ISO)
- Renault Megane II 2005 (ISO)
- Renault Kangoo 2006 (ISO)
- Subaru Impreza 1.6TS 2002 (ISO)
- Subaru Impreza WRX 2005 (ISO)
- ToyotaCamry 2.0A 2004 (ISO)
- ToyotaCamry 2.4A 2005 (ISO)
- ToyotaCorolla Altis 1.6A 2005 (ISO)
- ToyotaCorolla GLXi G8 1999 (ISO)
- ToyotaCorolla G9 2002 (ISO)
- ToyotaVios 2004 (ISO)
Package Included:
- 1 x Bluetooth Car obd2 scan tool
- 1 x CD drive
